Descrizione di prodotto

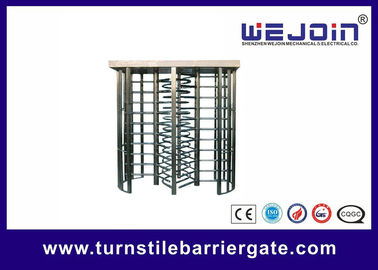

Full height turnstiles

Applications: office building, hotel, commercial building,company, it can compatible with many types of access control system, time attendance, fingerprint, bar code, etc.

  • Stainless steel housing
  • Bi-direction passing, the arm can rotate from one direction or two directions(optional)

Functions & Features:



1. Compatible with several control devices IC, ID, magcard, bar code



2. Unlocking is quick and reliable.



3. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass.



4. Automatically reset function: It will automatically lock if the pedestrian hasn't pass through the channel in the pre-set time after the opening. The passing time is adjustable.



5. The centre rotor will be set free (default) or locked (optional) automatically when the power is off.



6. Emergency-escape function: the centre rotor will be set free automatically by pressing the emergency button which can be remote controlled whether the power is on or off.



7. Counting Function of the controller, LED figure display function (optional)


8. Memory Function attached in the controller


9. With standard input, output interface

  Model

Item

WJFT601

WJFT602

WJFT603

WJFT610

WJFT611

WJFT612

Material of housing

201/304 stainless steel

Thickness of housing

2.00mm

Dimension of housing

1630*1500*2300

1400*12002300

1630*1500*2300

2800*1803*2400

2150*1260*2300

2210*1500*2300

Length of pole

610mm

470mm

510mm

610mm

470mm

610mm

Net weight

70kg

250kg

230kg

500kg

500kg

600kg

Max load-bearing pole

80kg

30kg

80kg

80kg

30kg

80kg

Produce processing

Laser cutting fully controlled by computer

Driving force of pole

3kg

Power supply

AC220V±10%, AC110± 10%

Frequency

50/60HZ

Transmission of pole

Digital transmission

Light indicator

Direction indicating

Rotating direction

Single direction/double direction

Time for opening

0.2second

Communication interface

Standard RS485(distance less than 1200m)

Input interface

Dry contact signal or +12Vlevel signal or pulse signal with width more than 100ns DC12V

Transit speed

30-40 people

Working environment

Indoor/outdoor(shelter)

Working temperature

-10℃~+50º℃

Relative humidity

≤90%, o condensation
