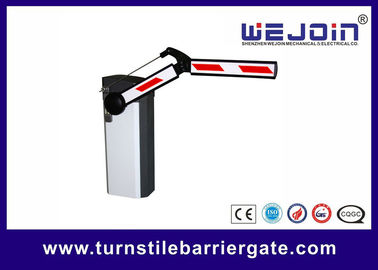

WJDZ820
A cutting-edge automation equipment for effective traffic control and management
Robust reliable flexible
With attractive design, this boom will reduce the operation load of the barrier gate and prolong its lifespan
Maximum boom length is 4 meters
Brand new process design makes the high strength and stainless folding arm
1. Open the gate by motor wheel when power off and automatic locking when power on
2. Balance boom running with a motor transmission of cranks and shafts
3. Remote control to operate the barrier gate
4. Auto reverses when the boom meets obstacles
5. Infrared photocells interface is available
6. Loop detector interface is available
7. Well integrated with car parking system equipments, with wire control (push button)
8. Interface for traffic light
9. Installation on both sides (left or light)
10. Auto-delay when closing (adjustable)
11. Boom with protective rubber band
Installation Changement
|
Model Item |
820-11 |
820-13 |
820-16 |
820-23 |
820-26 |
820-33 |
820-36 |
820-46 |
820-56 |
|
Running time |
1.5sec |
3sec |
6sec |
3sec |
6sec |
3sec |
6sec |
6sec |
6sec |
|
Boom type |
straight |
90 degree folding |
180 degree folding |
2fencing |
3fencing |
||||
|
Max boon length |
3M |
4.5M |
6M |
3M |
5M |
3M |
5M |
4.5M |
4M |
|
Boom dimension |
25*80mm |
45*100mm |
|||||||
|
Boom weight |
3kg |
4.5 kg |
6 kg |
6.5 kg |
8 kg |
9 kg |
11 kg |
7 kg |
7.5 kg |
|
Voltage |
AC220V±10%, AC110± 10% |
||||||||
|
Frequency |
50/60HZ |
||||||||
|
Motor voltage |
220V |
||||||||
|
Power working temperature |
80W |
||||||||
|
working temperature |
-35centigrade～+60centigrade |
||||||||
|
Protection degree |
IP44 |
||||||||
