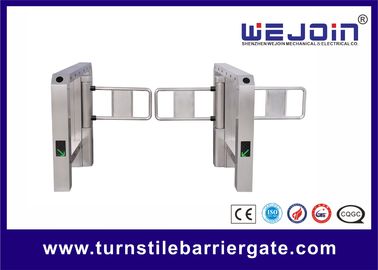

Traffic light Swing Barrier Gate for Pedestrian With Dry Contact Interface

Informazioni di base
Luogo di origine: La Cina
Marca: WEJOIN
Certificazione: CE,ISO
Numero di modello: WITB106
Quantità di ordine minimo: 1PC
Prezzo: negotiation
Imballaggi particolari: SCATOLA DI LEGNO
Tempi di consegna: 5-10 giorni
Termini di pagamento: Rilascio del telex, L/C, Western Union
Capacità di alimentazione: 50pz/settimana
Informazioni dettagliate
Evidenziare:

Tornelli Vita alta

,

controllo di accesso pedonale del portone


Descrizione di prodotto

Traffic light  Swing Barrier Gate for Pedestrian With Dry Contact Interface





Quick Detail:

  • Name: Swing Barrier gate
  • Application: Indoor and outdoor(shelter)
  • Feature: Auto-reverse passing
  • Relative hunmidity:≤90%,with no condensation
  • Motor material: Ateel and aluminum alloy
  • Certificate: CE,ISO
  • Motor type: DC24V,brush
  • Protect grade: IP32





Description:





1. WEJOIN swing barriers have automatic detection for malfunctions, which will be convenient for customer to maintain and operate.



2. Secondly, WEJOIN swing barriers have a compact electro-mechanical design with unique drive which and a self-lock mechanism to ensure product durability and silent operation



3. Thirdly, WEJOIN swing barriers have input interface that are available for dry contact and switch signal connections. So customers can connected the swing barrier with different system, like card reader, ticket system, token system and finger printer, etc.



4. Fourthly,  WEJOIN swing barriers input interface available for dry contact and switch signal connection



5. Fifthly, WEJOIN swing barriers have audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.



6. Lastly,WEJOIN swing barriers can be integrated with fire control device, which allow the release on emergency for security consideration.





Specifications





Model

Item

Swing Barrier Mechanism
Arm Length(Optional) 500-900mm
Mechanism Dimension 108*450mm
 Swing Direction double direction or single
 Material  Steel and Aluminum Alloy
Driving Motor DC 24V , brush
 Input Interface Dry Contact and Switch Signal Connection
Voltage Motro 220V±15% ,110V±15%
 Starting time after power on  3s
Time for Opening or Closing 1s
Working Temperature  —25°C~50°C
Working Environment Indoor / Outdoor (Shelter)
Transit Speed 30~40 persons/min
Relative Humidity ≤90%, with no condensation
