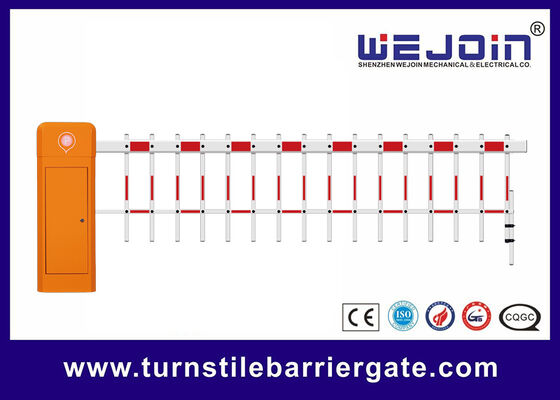

DC24V Variable-Frequency 100% Duty Cycle 2Fence 4.5M Boom Remote Control Barrier Gate designed for reliable performance in continuous operation environments.
The boom barrier gate is equipped with a DC variable frequency motor, combined with a heavy-duty connecting rod transmission mechanism and balancing spring system. This configuration delivers smooth and stable boom movement while maintaining reliable performance under continuous operation.
This design helps ensure long-term reliability in high-frequency vehicle access applications.
To improve operational safety, the barrier gate features an automatic reversing function.
The controller supports various external anti-crush devices to provide comprehensive safety protection.
Designed for intelligent parking systems and centralized management platforms, the barrier gate supports multiple communication methods.
RS485 offline communication enables multiple barrier gates to operate synchronously without requiring a central controller, making it suitable for dual-lane or multi-lane entrances.
An optional Bluetooth module provides convenient wireless commissioning and diagnostics.
This feature improves commissioning efficiency for installers and system integrators.
The barrier gate is equipped with a large LCD display and English visual menu for easy operation.
The user-friendly interface helps reduce installation and maintenance time.
This interface is available for parking system, also available for external controller to control barrier gate.
It is used for controlling the barrier gate or checking the status of the barrier gate by computer or system; also used for online controlling the paired barrier gates synchronously.
| Model | WJCB01VF-H | WJCB01VF-I |
|---|---|---|
| Running Speed | 1-4S | 2-6S |
| Boom Type | Straight | Straight |
| Max Boom Length | 4.5M | 4M~8M |
| Input Voltage | AC100-265V | |
| Frequency | 50/60HZ | |
| Motor Voltage | DC24V | |
| Enclosure Rating | IP54 | |
| Working Temperature | -30°C ~ +70°C | |
| MTBF | 6000000 times | |
| Traffic Flow Application | 24 hours uninterrupted operation | |
| Max Motor Power | 240W | 180W |
| Max Motor Speed | 500r/min | 360r/min |
| Max Torque | 280N.m | 320N.m |
